Detailed Product Description
CNC wood carving machine for doors and cabinet
Suitable material:
Wood,MDF,Foams,Plastic,PVC,Aluminum and so on
Application Industry:
Woodworking industry: Furniture,cupboard doors,wooden doors etc
Advertising industry: Advertising signs, logo production, acrylic cutting etc
Decoration industry: A sculpture of copper, aluminum, other soft metal and wood etc
Detail pictures of the atc cnc router
Main Configurations of multipurpose woodworking machine
1) Working area: 1300mm*2500mm*200mm
2) Syntec 6MB controller system from Taiwan
3) YASKAWA Servo system
4) 9.0KW Italy HSD ATC air cooling spindle
5) 11.0kw DELTA inverter made in Taiwan
6) ATC with 8 positions,in line
7）Automatic Lubrication system
8）Germany Schneider electric parts
9)Separated control box
10)ArtCam software
11) zone Vacuum table
bakelitte + aluminium Tslot(Vacuum table)
12)Protection vacuum table MDF sheet
13)25 mm HIWIN Linear guide
14)Z 25 TBI ball screw on Zaxes
Technical Parameters of wood cutting machine for furniture :
|
NO.
|
Items
|
|
Parameters
|
Option
|
|
1
|
Working area
|
X Y Z Axis
|
1300*2500*200mm
|
≦500mm
|
|
3
|
Accuracy
|
Working Accuracy
|
±0.03/300mm
|
|
|
Repositioning Accuracy
|
±0.03/300mm
|
|
4
|
Speed
|
MAX Traveling Speed
|
80000mm/min
|
|
|
MAX Working Speed
|
45000mm/min
|
|
5
|
Spindle
|
Spindle Power
|
Italy HSD 9KW ATC Spindle
|
|
|
Spindle Speed
|
0-24000r/min
|
|
|
6
|
Working Voltage
|
|
AC 380V/50Hz
|
AC220V/50Hz
|
|
7
|
Net/Gross Weight
|
|
1700KG/1900KG
|
|
|
8
|
Packing size
|
|
3520*2980*2500mm
|
|

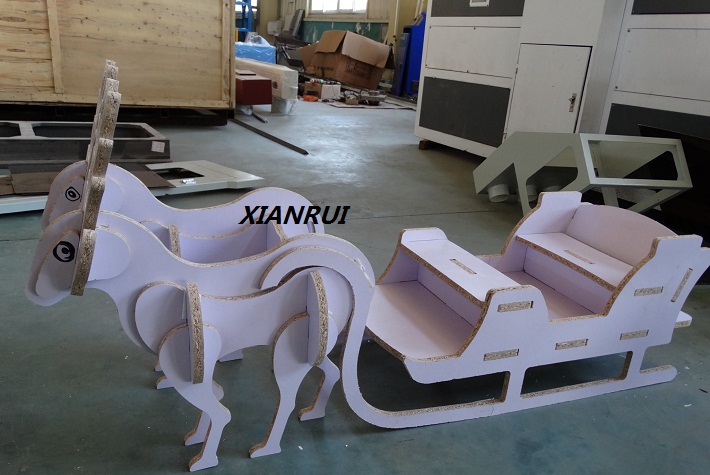

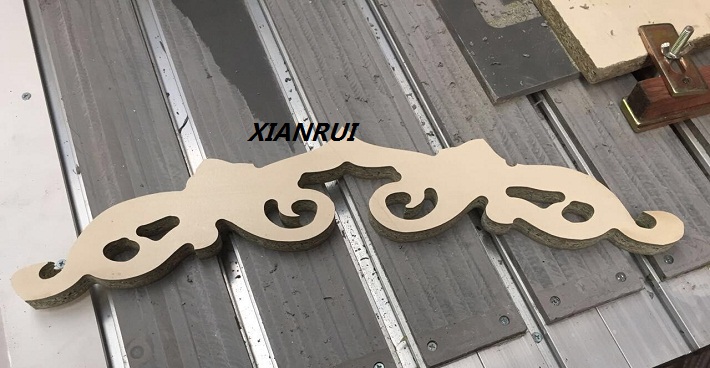

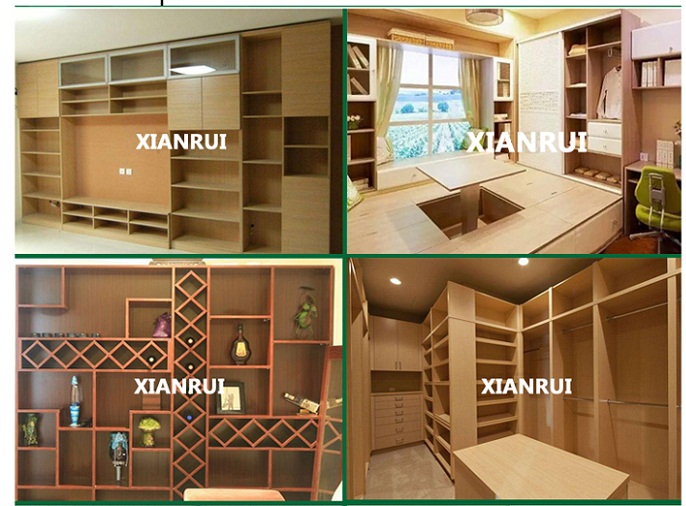

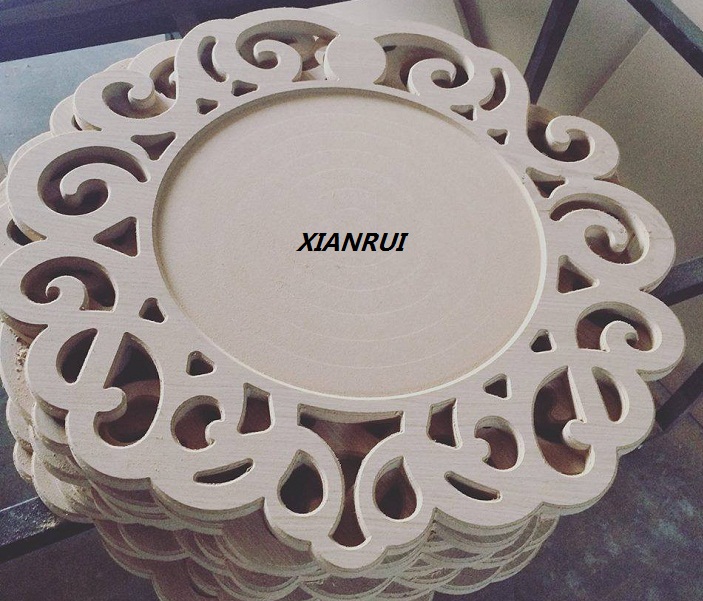

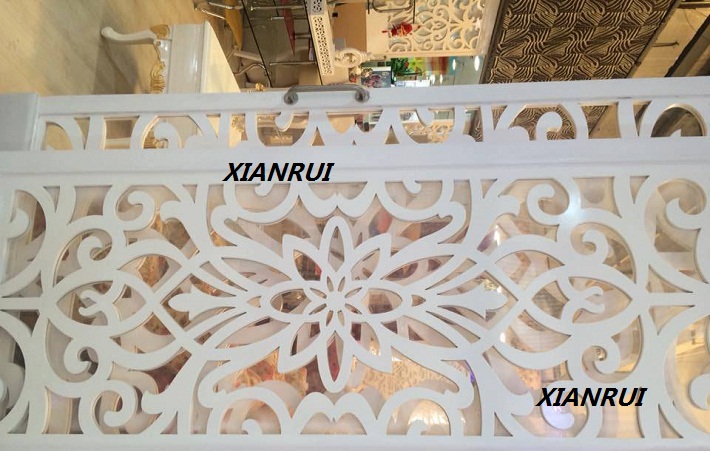

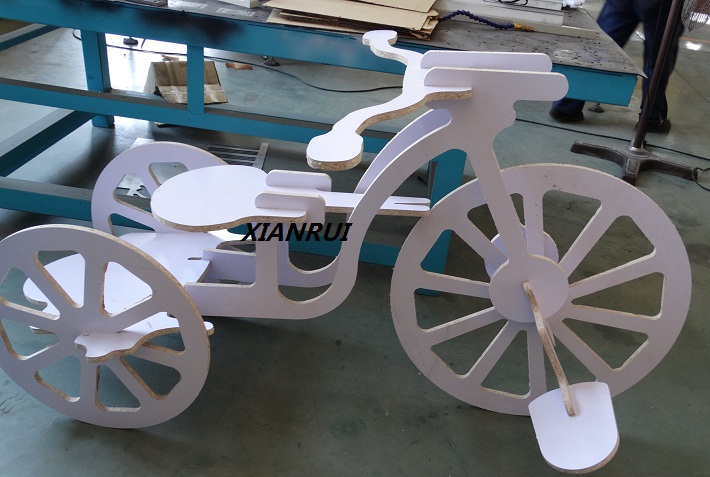

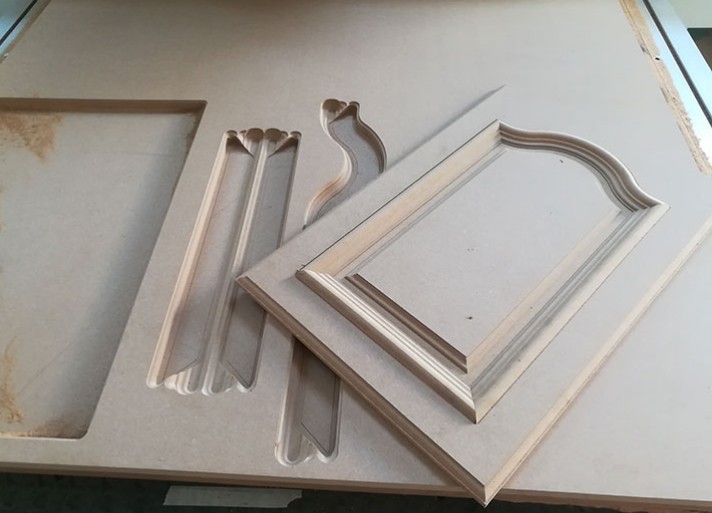

Work Samples made by jinan xianrui cnc router
