ATC CNC router with servo motors and cnc automatic loading and unloading system
  Posting Date : 2021-09-25 14:25:51

Detailed Product Description

ATC CNC router with servo motors and cnc automatic loading and unloading system


Main Configurations of our B series Linear atc cnc router:

1. HQD9kw air cooling atc spindle

2. 1000w AC servo motors and drivers

3. Japan Shimpo reducers

4. Japan 25# linear guider

5. Taiwan Atlanta helical toothed rack drive

6. 7.5kw water pump

7. 5.5kw double bags dust collect system

8. 12 tools linear automatic tool changer

9. Taiwan LNC controller

10. Automatic lubricate system

11. 2500✘1300*200mm machine work area size

12. Heavy structure ,machine weight to :2600kgs

13. Anti-static spray outside structure

14. Taiwan 11kw inverter

15. Auto loading and unloading system

16. Tool setting gauge

17. High soft shielded cable

18. Supporting block for foot-pad

19. Positioning cylinder device

20. MPG Pendant

21.Z AXIS with Taiwan TBI Ball screw

Detail pictures of cnc machine woodworking

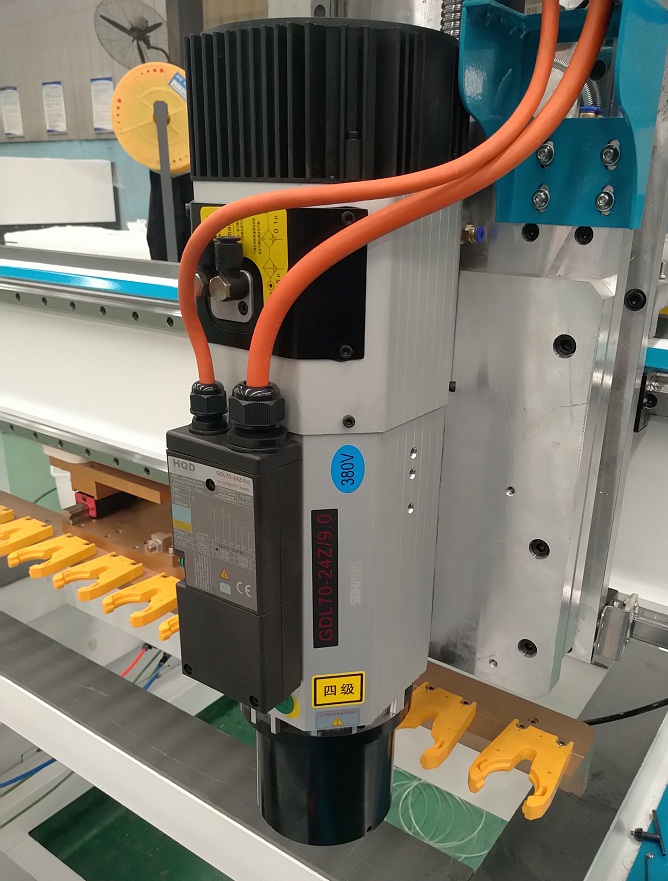

HQD9kw air cooling atc spindle


AC servo motors and drivers



Close Shielded cable,full protections,woodworking cnc router machinery

High soft shielded cable


MPG Pendant

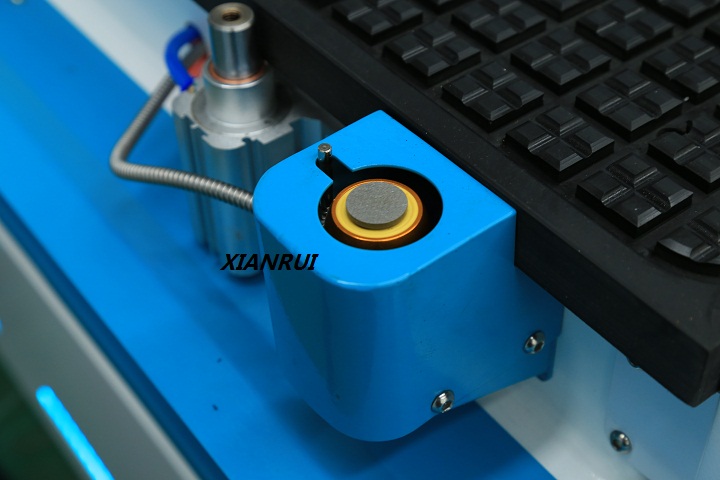

Tool setting gauge



12TOLLS Linear

Vacuum table


CNC Controller ,we also have SYNTEC /LNC/WEIHONG for choose

Auto lubricating system of cnc wooden router cutting machine


Specifications of XIANRUI multi spindles cnc router machine:

Parameters

Standard Specifications 1325ATC cnc router machine

X,Y,Z Working Area

1300*2500*200mm|4*8ft

Optional Working Area

1500*3000*200mm|5*10ft

Optional Working Area

2000*3000*200mm|7*10ft

Spindle Power

9KWair spindle

Table Surface

Vacuum table

Max. Rapid Travel Rate

60m/min

Max. Working Speed

40m/min

Unloading Speed

15m/min

Drive Motors

AC servo motors and drivers

Optional Drive Motors

YASKAWA AC servo motors and drivers

Optional Drive Motors

Delta AC servo motors and drivers

Optional Drive Motors

YAKO or leadshine Ac Motors and drivers

Operating System

Shanlong system(no need computer to controller)

Optional Operating System

Syntec system(no need computer to controller)

Optional Operating System

Weihong system (no need computer to controller)

Optional Operating System

NC Studio system (need computer to controller)

Auto loading and unloading system

   As optional

Software Compatibility

YUNXI,Option:Alpacam,Carbinets Version , solidworks,etc

Interface

USB,NETWORK

Work Samples made by xianrui router cnc



Package of the wood pneumatic cnc router machine:

Firstly  Packed the wood carving machine with plastic sheet for clearing and damp proofing

Secondly Then put the cnc router machine in the plywood case for safety and clashing.

Thirdly  Transport the plywood case into the container.
